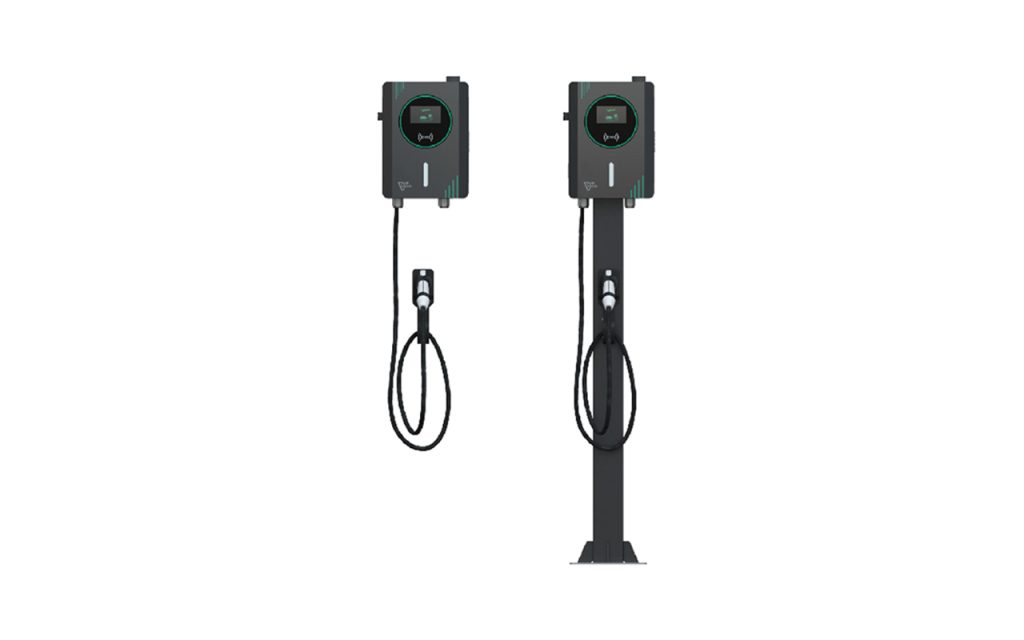

AC Charger -Compact Series
- Metal encloser, sturdy design
- Compact and tough design
- Easy to install, easy to maintain
- More than 10000 times charging connector plug in-out test
Specifications
Model
Electrical
Output Power
Input Rating
Output Voltage
Output Current
LAC-32A-S1-15/EN/SAE
7kW Max.
AC230, 50Hz/60Hz, L+N+PE
AC220V
32A Max.
LAC-16A-T1-15/EN/SAE
11kW Max.
AC400V, 50Hz/60Hz,3P+N+PE
AC380V
16A Max.
LAC-32A-T1-15/EN/SAE
22kW Max.
32A Max.
Interface and Control
Display
Authentication
Network Connection
Platform Communication
Charging Connection Type
Environment
Enclosure Rating
Operating Temperature
Storage Temperature
Altitude
Humidity
General
Charging Cable
Installation Mode
Dimension (WxDxH)
Cooling Method
Shell Material
Safety and Regulation
Safety Protection
Standard
–
4.3″ inch display screen
RFID, APP (optional)
Ethernet/4G, Wifi (optional)
OCPP 1.6J
Type1, Type2, GBT
IP55
-30°C~50℃C
-40°C-70℃C
<2000m
5%~95%(No condensation)
3.5m (other length is optional)
Wall Box, Column Pedestal
380x280x140mm
Natural cooling
Aluminum zinc coating
Leakage protection, Over voltage, Over current, Phase loss, Communication abnormality,Emergency stop, etc.
IEC61851,IEC62196,GBT20234,GBT27930
