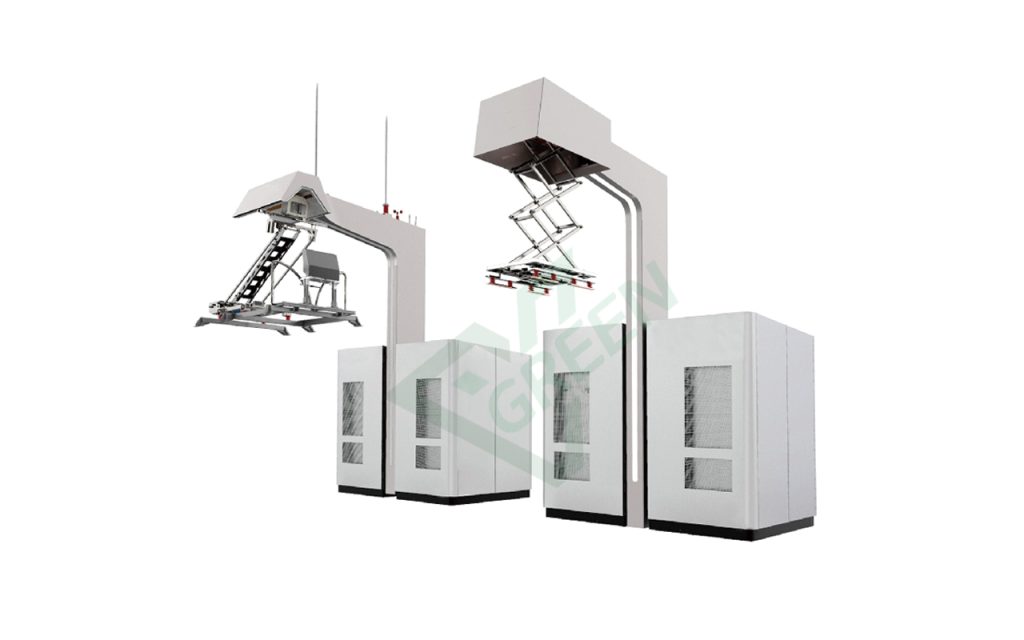

Panto Charger Series
- 200~1000V super wide output voltage range
- Passed Class 12 wind test
- 820000+Pantograph trouble-free lift tests
- 15 safety protection functions
- Support OPPCharge standard
Specifications
Model
Electrical
Maximum Output Power
Input Voltage
Output Voltage
Output Current
Full Load Power Factor
THD
Full of Efficiency
Upward pantograph
200kW~800kW
AC380V1400V1415V1440V1480V,50Hz/60Hz,3P+N+PE
DC200~1000V
DC5-500A
>0.99
<5%
>95% at full load
Downward pantograph
Interface and Control
Interface Type
HMI
RFID
Network Connection
Languages
Platform Communication
Environment
Enclosure Rating
Operating Temperature
Storage Temperature
Altitude
Humidity
General
Communication Method
Installation Mode
Dimension (WxDxH)
Cooling Method
Weight
Safety and Regulation
Safety Protection
Standard
–
Pantograph
15.6″ high brightness TFT touch screen display
ISO/IEC 14443AB,ISO/IEC15393
Ethernet, WiFi , 4G(optional)
Chinese/English (other language available on request)
OCPP 1.6J (to be upgraded to OCPP 2.0.1)
IP55/IK10
-30°C~50℃
-40°C-70℃
<2000m(over 2000m de-rating power output)
0%~95%(No condensation)
PLC/WIFI
Fixed installation
3000x2000x2300mm(cabinet)650x250x4500mm(charge rack)
Forced fan cooling/Air-condition cooling (optional)
2950+20kg
Leakage protection, insulation protection, Short circuit protection, Over/under voltageprotection, Over current protection, Surge protection, Emergency stop protection.
IEC61851-1/23/24,IEC62196-1/3,OPPCharge
