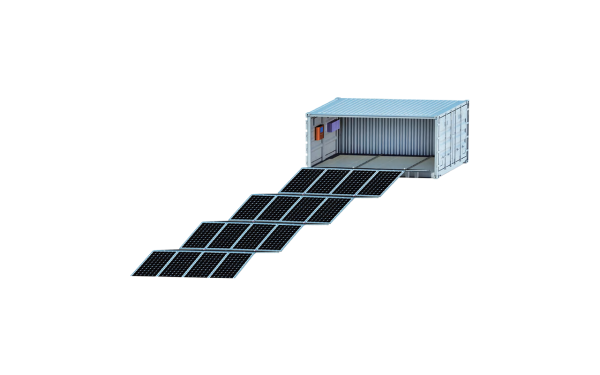

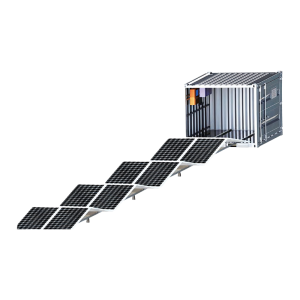

SC20GV-M-80K-W（Wheel Type）
Size (L*W*H/mm)
6058*2438*2591
Weight (Tons)
13
Max.Power (Pmax/kWp)
92.16
Inverter Type
On Grid
Solar power container uses customized containers that meet maritime standards as carriers, and is equipped with foldable frames,rail and rack systems, inverters, energy storage batteries, and other equipment inside; it has the advantages of modularity, mobility, rapid deployment, simple maintenance, and is suitable for use in areas with electricity shortages and inconvenient electricity generation after wars and disasters, remote areas, islands, oil and gas field exploitation areas, Belt and Road infrastructure areas, etc.
Photovoltaic series on-grid system
The direct current generated by the solar module is converted into alternating current by the inverter, which is then supplied to the load and connected to the grid. In this way, while meeting the household load, excess electricity can also be sold into the grid.
Application Scenario
Photovoltaic power station
Ports And Islands
Business And Community
Military Base
Convenience and circulation
Photovoltaic modules and DC stringing are installed at the factory, allowing the product to be delivered to the site fully assembled and ready for operation, significantly reducing labor and spare parts management costs. This not only lowers costs for power station relocation and circulation but also enhances market accessibility.
Adaptability to harsh environments
The GREEN V is configurable to meet the needs of projects being
deployed into the most adverse environments. Certified to withstand
cyclonic wind speeds (up to 72 m/s, 3.4 kPa, AS1170.2:2021), and
designed for highly corrosive environments (C4 resistance), the Green V
is a highly robust and dependable ground-mount solar solution.
Quality
Green V is equipped with advanced quality inspection systems and a professional quality control team, from the procurement of parts, each key point of production is monitored and recorded as a quality control inspection log, regularly reviewed by the inspection personnel, to ensure that the products are flawless. In addition, the factory is also equipped with semi-automatic production lines to ensure high-quality operation at all stages. Each device is produced by a dedicated line to ensure the consistency and reliability of product quality.
Specifications
System parameters
Total Weight (Tons)
13
Type of Container
20GP*1
Solar Array Capacity (Pmax / kWp)
92.16 (90~105)
Type of Solar Module (W)
480 x192 (480~520)
String Inverter (kW)
80*1
Bracket (Number of Module per Sheet)
2*96
Total Unfolded Footprint (L*W*H/m)
103(34m*6rows)*2.38(3.0)*0.8(2.6)
Occupied Area of Whole System (m²)
486 (34*2.38*6rows)
Complete Unfolding Time (mins)
110
Complete Folding Time (mins)
70
Installation Persons
4
Solar Panel
Solar Module Type
Topcon/HJT
Max.Power (Pmax/Wp)
480 (480~520)
Max. Power Voltage (Vm/V)
35.69
Max. Power Current (Im/A)
13.45
Open Circuit Voltage (Voc/V)
43.36
Short Circuit Current (Isc/A)
14.16
Product Dimensions (mm)
1910*1134*30
Weight (Kgs)
26
Quantity of Solar Module (pcs)
192 (192~200)
Inverter
Inverter Type
On Grid
Inverter Capacity (kW)
80
Max. PV Power (Pmax/Wp)
104000
Nominal AC Output Power (W)
80000
Maximum AC Output Power (W)
88000
Nominal AC Voltage (V)
3L/N/PE 220/380V, 230/400V
AC Grid Frequency Range (Hz)
50 / 60 (Optional)
Maximum Output Current (A)
133.3/127.5
Dimensions (WxHxD/mm)
838*568*324
Weight (kg)
81
Operating Temperature Range (℃)
-25~60℃, >45℃ derating
Communication
RS485/RS232/Wifi/LAN
Bracket
Material of Bracket
Carbon Steel Q235B
Single Bracket Dimension (L*W*D)
2378*1980*30
Angle of Unfolding Bracket (°)
15
Length of Unfolding Bracket (m)
32*6rows
Occupied Area of Unfolding Bracket (m²)
457 (32*2.38*6rows)
Quantity of Bracket (Page)
96 (96~100)
