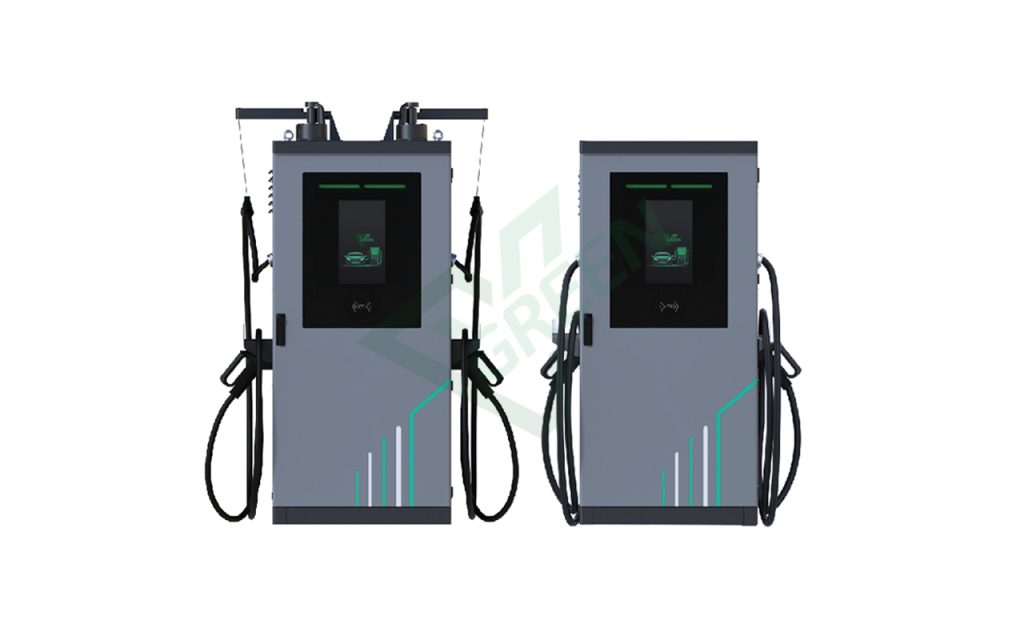

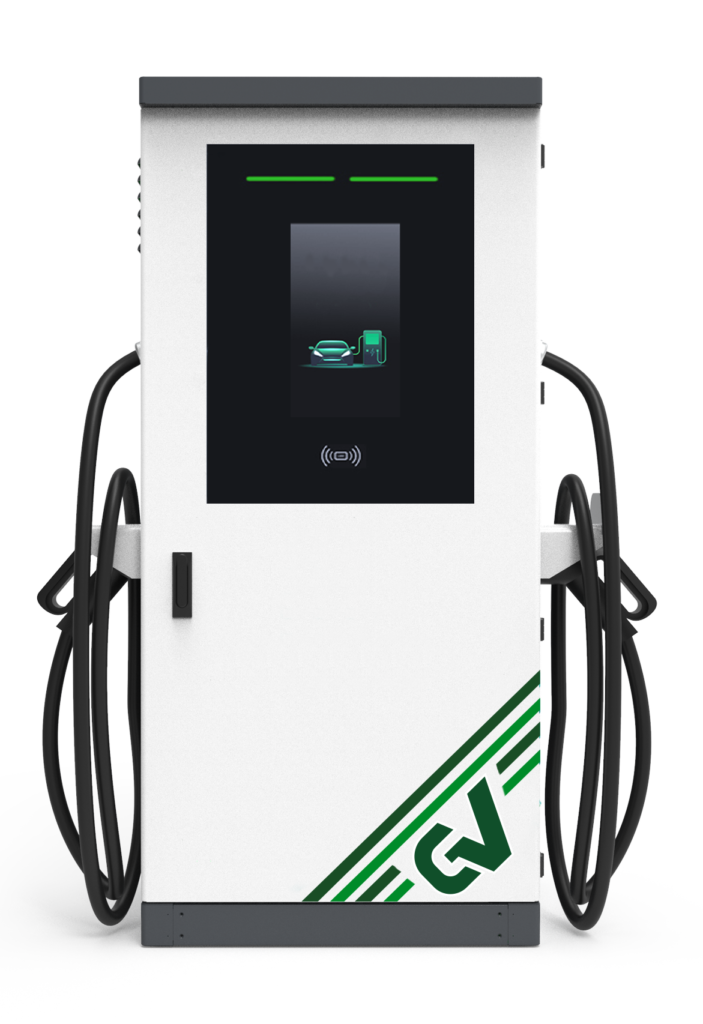

ALL-IN-ONE DC Charger
- Modular design, for easy maintenance
- 8200~1000V super wide output voltage range
- Safe, reliable,compact and stylish design, save space
- 15.6" super large touch screen, support extra advertising revenue
Specifications
| MODEL | L60kW-EN | L80kW-EN | L120kW-EN |
|---|---|---|---|
|
Maximum Output Power |
60kW |
80kW |
120kW |
|
Charging Connector Number |
30kW+30kW |
40kW+40kW |
60kW+60kW |
|
Dimension (WxDxH) |
740x480x1600mm(without charging connector rack) |
740x480x1600mm(without charging connector rack) |
740x570x1600mm |
|
Weight |
195kg±10kg (without power module) |
195kg±10kg (without power module) |
215kg±10kg |
Electrical |
|||
|
Input Voltage |
AC380V1400V1415V1440V1480V,50Hz/60Hz,3P+N+PE |
||
|
Output Voltage |
DC200~1000V |
||
|
Rated Output Current |
125A(CHAdeMO),200A(CCS1, CCS2),250A(GBT), (over 300A is optional) |
||
|
Full Load Power Factor |
>0.99 |
||
|
THD |
≤5% |
||
|
Full of Efficiency |
>95% at full load |
||
Interface and Control |
|||
|
Charging Connector Type |
CCS1,CCS2,GBT, CHAdeMO, NACS |
||
|
HMI |
15.6″ high brightness TFT touch screen display |
||
|
Authentication |
ISO/IEC 14443AVB. ISO/IEC15393 RFID/PIN codeNIN code/App/POS Terminal (optional) |
||
|
Network Connection |
Ethernet, WiFi, 4G (optional) |
||
|
Languages |
Chinese/English(other language available on request) |
||
|
Platform Communication |
OCPP 1.6J(to be upgraded to OCPP 2.0.1) |
||
Environment |
|||
|
Enclosure Rating |
IP55/IK10 |
||
|
Operating Temperature |
-30°C~50℃C |
||
|
Recommended Storage |
-40℃~70℃ |
||
|
Altitude |
<2000m(over 2000m de-rating power output) |
||
|
Relative Humidity |
0~95%(no condensation) |
||
General |
|||
|
Charging Cable |
5m standard (other length is optional) |
||
|
Cable Management |
Optional |
||
|
Installation Mode |
Fixed installation |
||
|
Cooling Method |
Forced fan cooling |
||
Safety and Regulation |
|||
|
Detection and Protection |
Leakage protection, insulation protection, Short circuit protection, Over/under voltageprotection, Over current protection, Surge protection, Emergency stop. |
||
|
Standard&Certificate |
IEC61851,IEC62196,ISO15118/DIN70121,CE/TUV/UKCATR25 mark |
||
| MODEL | L160kW-EN | L180kW-EN | L200kW-EN |
|---|---|---|---|
|
Maximum Output Power |
160kW |
180kW |
200kW |
|
Charging Connector Number |
80kW+80kW |
90kW+90kW |
80kW+120kW |
|
Dimension (WxDxH) |
860x655x1800mm |
860x655x1800mm |
860x655x1800mm |
|
Weight |
285kg±10kg |
291kg±10kg |
291kg±10kg |
Electrical |
|||
|
Input Voltage |
AC380V1400V1415V1440V1480V,50Hz/60Hz,3P+N+PE |
||
|
Output Voltage |
DC200~1000V |
||
|
Rated Output Current |
125A(CHAdeMO),200A(CCS1, CCS2),250A(GBT), (over 300A is optional) |
||
|
Full Load Power Factor |
>0.99 |
||
|
THD |
≤5% |
||
|
Full of Efficiency |
>95% at full load |
||
Interface and Control |
|||
|
Charging Connector Type |
CCS1,CCS2,GBT, CHAdeMO, NACS |
||
|
HMI |
15.6″ high brightness TFT touch screen display |
||
|
Authentication |
ISO/IEC 14443AVB. ISO/IEC15393 RFID/PIN codeNIN code/App/POS Terminal (optional) |
||
|
Network Connection |
Ethernet, WiFi, 4G (optional) |
||
|
Languages |
Chinese/English(other language available on request) |
||
|
Platform Communication |
OCPP 1.6J(to be upgraded to OCPP 2.0.1) |
||
Environment |
|||
|
Enclosure Rating |
IP55/IK10 |
||
|
Operating Temperature |
-30°C~50℃C |
||
|
Recommended Storage |
-40℃~70℃ |
||
|
Altitude |
<2000m(over 2000m de-rating power output) |
||
|
Relative Humidity |
0~95%(no condensation) |
||
General |
|||
|
Charging Cable |
5m standard (other length is optional) |
||
|
Cable Management |
Optional |
||
|
Installation Mode |
Fixed installation |
||
|
Cooling Method |
Forced fan cooling |
||
Safety and Regulation |
|||
|
Detection and Protection |
Leakage protection, insulation protection, Short circuit protection, Over/under voltageprotection, Over current protection, Surge protection, Emergency stop. |
||
|
Standard&Certificate |
IEC61851,IEC62196,ISO15118/DIN70121,CE/TUV/UKCATR25 mark |
||
| MODEL | L240kW-EN | L320kW-EN | L360kW-EN |
|---|---|---|---|
|
Maximum Output Power |
240kW |
320kW |
360kW |
|
Charging Connector Number |
120kW+120kW |
160kW+160kW |
180kW+180kW |
|
Dimension (WxDxH) |
860x655x1800mm |
850x745x1900mm |
800x1050x1600mm |
|
Weight |
319kg±10kg |
362kg±10kg |
377kg±10kg |
Electrical |
|||
|
Input Voltage |
AC380V1400V1415V1440V1480V,50Hz/60Hz,3P+N+PE |
||
|
Output Voltage |
DC200~1000V |
||
|
Rated Output Current |
125A(CHAdeMO),200A(CCS1, CCS2),250A(GBT), (over 300A is optional) |
||
|
Full Load Power Factor |
>0.99 |
||
|
THD |
≤5% |
||
|
Full of Efficiency |
>95% at full load |
||
Interface and Control |
|||
|
Charging Connector Type |
CCS1,CCS2,GBT, CHAdeMO, NACS |
||
|
HMI |
15.6″ high brightness TFT touch screen display |
||
|
Authentication |
ISO/IEC 14443AVB. ISO/IEC15393 RFID/PIN codeNIN code/App/POS Terminal (optional) |
||
|
Network Connection |
Ethernet, WiFi, 4G (optional) |
||
|
Languages |
Chinese/English(other language available on request) |
||
|
Platform Communication |
OCPP 1.6J(to be upgraded to OCPP 2.0.1) |
||
Environment |
|||
|
Enclosure Rating |
IP55/IK10 |
||
|
Operating Temperature |
-30°C~50℃C |
||
|
Recommended Storage |
-40℃~70℃ |
||
|
Altitude |
<2000m(over 2000m de-rating power output) |
||
|
Relative Humidity |
0~95%(no condensation) |
||
General |
|||
|
Charging Cable |
5m standard (other length is optional) |
||
|
Cable Management |
Optional |
||
|
Installation Mode |
Fixed installation |
||
|
Cooling Method |
Forced fan cooling |
||
Safety and Regulation |
|||
|
Detection and Protection |
Leakage protection, insulation protection, Short circuit protection, Over/under voltageprotection, Over current protection, Surge protection, Emergency stop. |
||
|
Standard&Certificate |
IEC61851,IEC62196,ISO15118/DIN70121,CE/TUV/UKCATR25 mark |
||
