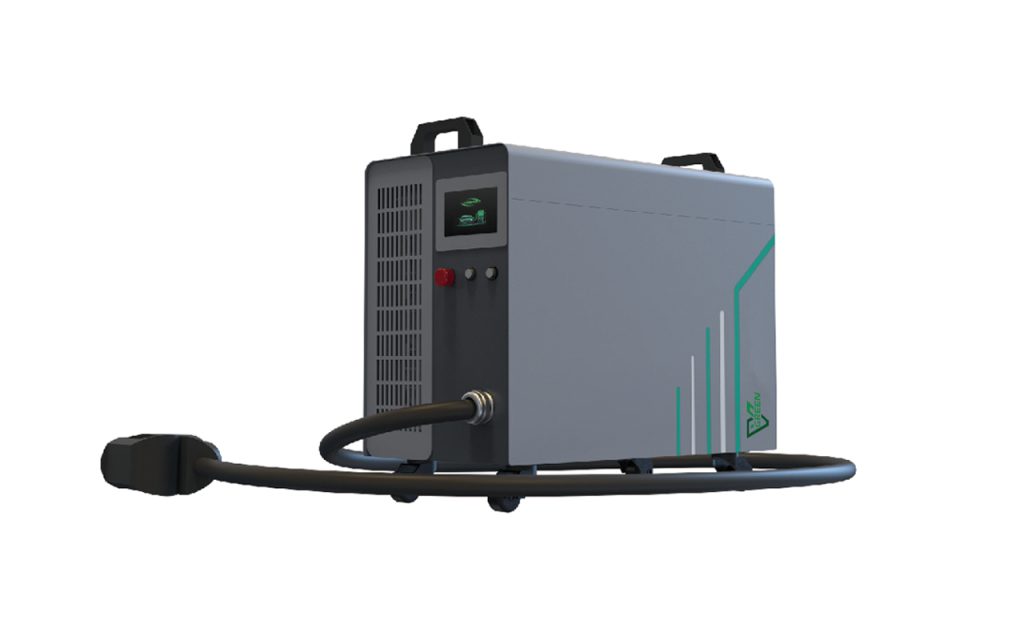

Portable Charger
- Safe, reliable, compact and stylish design
- Support switch on with load
- Small size, light weight and high efficiency
- Customizable branding
Specifications
| MODEL | L30kW-EN-W/C | L40kW-EN-W/C |
|---|---|---|
Electrical |
||
|
Power |
30kW |
40kW |
|
Output Current |
100A |
125A |
|
Input Voltage |
AC380V+15%,3P+N+PE,AC220V/230V,L+N+PE(optional), 50Hz/60Hz |
AC380V+15%,3P+N+PE,AC220V/230V,L+N+PE(optional), 50Hz/60Hz |
|
Output Voltage |
DC200~1000V |
DC200~1000V |
|
Full Load Power Factor |
>0.99 |
>0.99 |
|
THD |
≤5% |
≤5% |
|
Full of Efficiency |
≥95% at full load |
≥95% at full load |
Interface and Control |
||
|
Charging Connector Number |
1 |
|
|
Charging Connector Type |
CCS1, CCS2, GBT |
|
|
HMI |
4.3″ inch display screen |
|
|
Languages |
Chinese/English (other language available on request) |
|
Environment |
||
|
Enclosure Rating |
IP32 |
|
|
Operating Temperature |
-30°C~50℃C |
|
|
Recommended Storage |
-40°C-70℃C |
|
|
Altitude |
<2000m(over 2000m de-rating power output) |
|
|
Relative Humidity |
0%~95%(No condensation) |
|
General |
||
|
Charging Cable |
5m standard (other length is optional) |
|
|
Installation Mode |
Mobile |
|
|
Dimension (WxDxH) |
280x550x400mm(without handles and wheels |
|
|
Cooling Method |
Natural cooling |
|
Safety and Regulation |
||
|
Detection and Protection |
Insulation protection, Short circuit protection, Over/Under voltage protection,Over current protection, Surge protection, Emergency stop protection. |
|
|
Standard & Certificate |
IEC61851,IEC62196,IS015118/DIN70121 |
|
