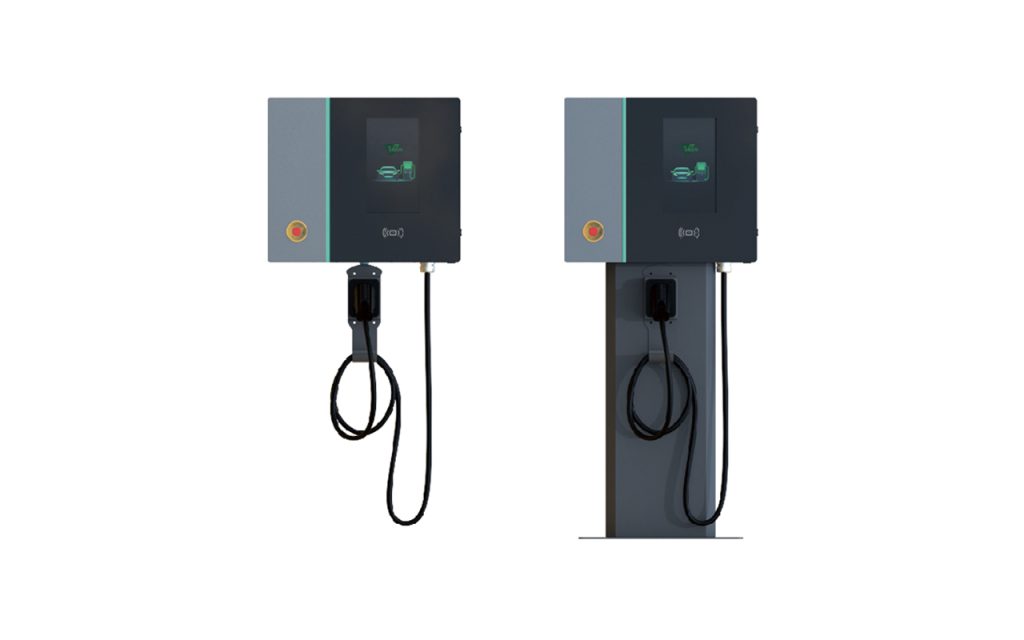

Wallbox DC Charger
- Safe, reliable, compact and stylish design, save space
- Modular design, for easy installation and maintenance
- 200~1000V super wide output voltage range
- 15.6" super large touch screen, support extra advertising revenue
Specifications
| MODEL | L30kW-EN-W/C | L40kW-EN-W/C |
|---|---|---|
Electrical |
||
|
Maximum Output Power |
30kW |
40kW |
|
Input Rating |
AC380V1400V1415V1440V1480V50160Hz.3P+N+PE |
AC380V1400V1415V1440V1480V50160Hz.3P+N+PE |
|
Output Voltage |
DC200~1000V |
DC200~1000V |
|
Rated Output Current |
100A |
133A |
|
Full Load Power Factor |
≥0.98 |
≥0.98 |
|
THD |
≤5% |
≤5% |
|
Full of Efficiency |
≥95% at full load |
≥95% at full load |
Interface and Control |
||
|
Charging Connector Number |
1 |
|
|
Charging Connector Type |
CCS1, CCS2, GBT |
|
|
HMI |
15.6″ high brightness TFT touch screen display |
|
|
RFID |
ISO/EC 14443A/B |
|
|
Languages |
Chinese/English (other language available on request) |
|
|
Network Connection |
Ethemet, Wifi, 4G (optional) |
|
|
Platform Communication |
OCPP 1.6J (be ready to upgrade to OCPP2.0.1 J) |
|
Environment |
||
|
Enclosure Rating |
IP55 |
|
|
Operating Temperature |
-30°C~50℃C |
|
|
Storage Temperature |
-40°C-70℃C |
|
|
Altitude |
<2000m(over 2000m de-rating power output) |
|
|
Humidity |
0%~95%(No condensation) |
|
General |
||
|
Charging Cable |
5m standard (other length is optional) |
|
|
Dimension (L x W x H) |
700x285x600 mm |
|
|
Weight |
75kg (without module) |
|
|
Installation Mode |
Fixed installation (column installation optional) |
|
|
Cooling Method |
Forced fan cooling |
|
Safety and Regulation |
||
|
Detection and Protection |
Insulation protection, Short circuit protection, Over/Under voltage protection,Over current protection, Surge protection, Emergency stop protection. |
|
|
Standard & Certificate |
IEC61851,IEC62196,IS015118/DIN70121, CE mark |
|
