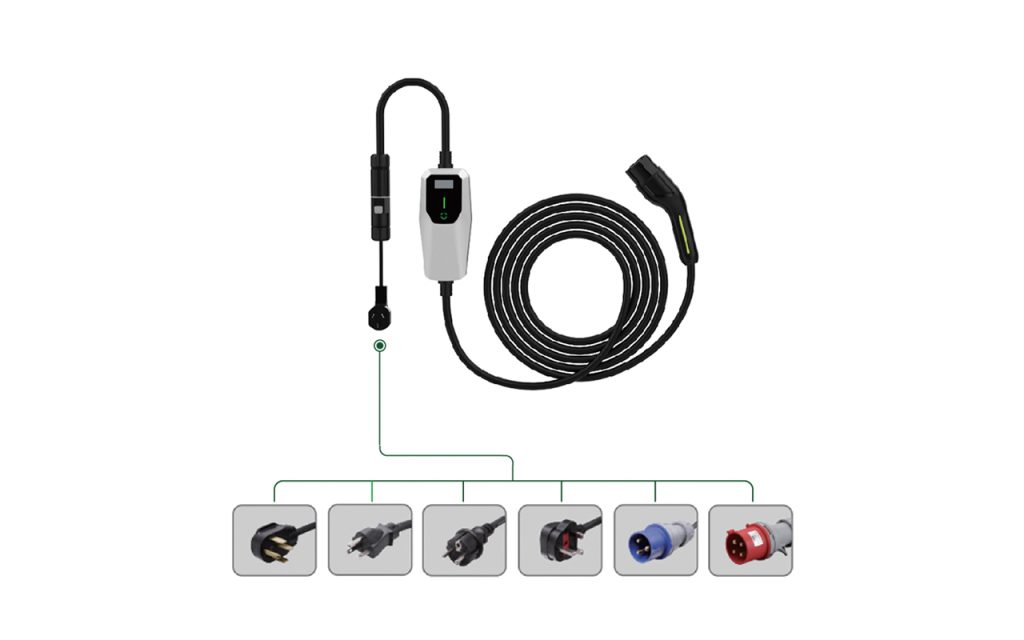

MODE2 AC Portable Charger
- Temperature detection fault automatic repair charge
- High protection level to lP66
- Easy to use, simply plug-in and charge
- Supports continous OTA upgrade
Specifications
| MODEL | LAC-16A-S1M2EN/LAC-32A-S1M2EN | LAC-16A-T1M2EN/LAC-32A-T1M2EN |
|---|---|---|
Electrical |
||
|
Input Rating |
AC230V,50Hz/60Hz,L+N+PE |
AC400V, 50Hz/60Hz,3P+N+PE |
|
Output Current |
6A/8A10A/13A/16A32A |
6A8A/10A/13A/16A32A |
|
Output Power |
3.5kW max. 7kW max. |
11kW max. 22kW max. |
|
Intemal RCD |
Type A AC 20/30mA +DC 6mA (Type B) |
|
Interface and Control |
||
|
Display |
LCD display |
|
|
Power Plug Interface |
Schuko/UK/AU/NEMA/CEE or customized |
|
|
Charging Connector Type |
Type1, Type2, GBT |
|
Environment |
||
|
Enclosure Rating |
IP66 |
|
|
Operating Temperature |
-25℃℃~55℃℃ |
|
|
Storage Temperature |
-30℃℃~85℃ |
|
|
Altitude |
<2000m(over 2000m de-rating power output) |
|
|
Humidity |
5%~95%(No condensation) |
|
General |
||
|
Total Cable Length |
5m standard (other length is optional) |
|
|
Control Box Dimension |
226mm(H)x105mm(W)x64mm(D) |
|
|
Weight |
2.2kg |
|
Safety and Regulation |
||
|
UV Protection |
TPU |
|
|
Safety Protection |
Leakage protection, Over temperature protection, Lightning protection, Over current protection,Automatic power failure, Under voltage protection, Over voltage protection, CP failure. |
|
|
Standard |
IEC 61851,IEC/EN 62752,EN 62196 |
|
